Semi Analytic Solution

Set up

As shown in math work, we can reduce the ODE to

We have an initial value boundary value problem (IVBP ODE), so let's prescribe boundary conditions at $x(s=0) = 0$ and $x(s=1) = 1$ such that our computational domain is $s \in [0,1]$ and the physical domain is $x \in [0,1] \subset \R$.

\[I(x) := \int_{x(0)}^{x(s)} \sqrt{M(\xi)} d\xi = C_1 s\]

Finally let's enforce the boundary condition at $x(1) = 1$ to solve for $C_1$ and find that

\[C_1 = \int_{0}^{1} \sqrt{M(\xi)} d \xi =: I_\text{tot}.\]

Therefore the final solution becomes

\[\int_{0}^{x(s)} \sqrt{M(\xi)} d\xi = I_\text{tot} s.\]

Now since the form of $M(x(s))$ is "not known" but rather is given as discrete points, integrating must be done numerically. We do know that $M$ is SPD and so

\[l^\top M l \geq 0, \forall l.\]

Since we are approximating $M \in \R^{2 \times 2}$ by $m = l^\top M l \in \R$, we are ensured that $\sqrt(m)$ will be positive. This implies that $I(x)$ is monotone increasing (modulo edge cases). To compute $I^{-1}(x)$, let's use linear interpolation. We can later try using "monotone cubic Hermite" (PCHIP).

Algorithm

Since the real function of $M(x)$ is unknown, let's use trapezoid rule to integrate. Then the algorithm will follow the steps

Compute $I(x)$ via trapezoid rule.
Compute $l = I(1)$.
Solve $I(x) = s * I(1)$
- Linear Interpolation
- monotone cubic Hermite (PCHIP)
- Higher order interpolation

Linear Interpolation

If we assume that $I(x)$ is given by piecewise linear functions between nodal values, than

\[I(x) \approx I_i + \frac{I_{i+1} - I_{i}}{x_{i+1} - x_i} (x - x_{i+1})\]

Since we have our trapezoidal approximation we can write $I(x) \approx t_j$ and solving for $x$ now gives

\[\theta = \frac{t_j - I_i}{I_{i+1} - I_i} \in [0,1], \quad x_j = x_i + \theta (x_{i+1} - x_i)\]

where we can numerically find $i$ using a binary search which is helpfully defined in Julia as searchsortedlast(dist, pnt).

function equidistribute_linear_inverse(x, m, N)
    @assert length(x) == length(m) "x and m must have same length"
    @assert isapprox(first(x), 0.0; atol=1e-12) && isapprox(last(x), 1.0; atol=1e-12)
    @assert issorted(x) "x must be strictly increasing"
    @assert minimum(m) >= 0.

    n = length(x) - 1
    Δx = x[2:end] .- x[1:end-1]
    w  = sqrt.(max.(m))  # √m

    # cumulative trapezoid
    I = similar(x, Float64)
    I[1] = 0.0
    for i in 1:n
        I[i+1] = I[i] + 0.5*(w[i] + w[i+1]) * Δx[i]
    end
    Itot = I[end]

    # uniform s-grid and targets
    s = range(0.0, 1.0; length=N)
    t = Itot .* s

    # invert by linear interpolation on (I, x)
    x_nodes = similar(s, Float64)
    for (j, tj) in enumerate(t)
        # find i with I[i] <= tj <= I[i+1]
        i = searchsortedlast(I, tj)
        if i == length(I)         # tj == I[end]
            x_nodes[j] = x[end]
        elseif I[i+1] == I[i]     # flat segment (m ~ 0)
            x_nodes[j] = x[i]     # or x[i] + θ*Δx[i] if you want uniform spread
        else
            θ = (tj - I[i]) / (I[i+1] - I[i])
            x_nodes[j] = x[i] + θ * (x[i+1] - x[i])
        end
    end
    return x_nodes
end

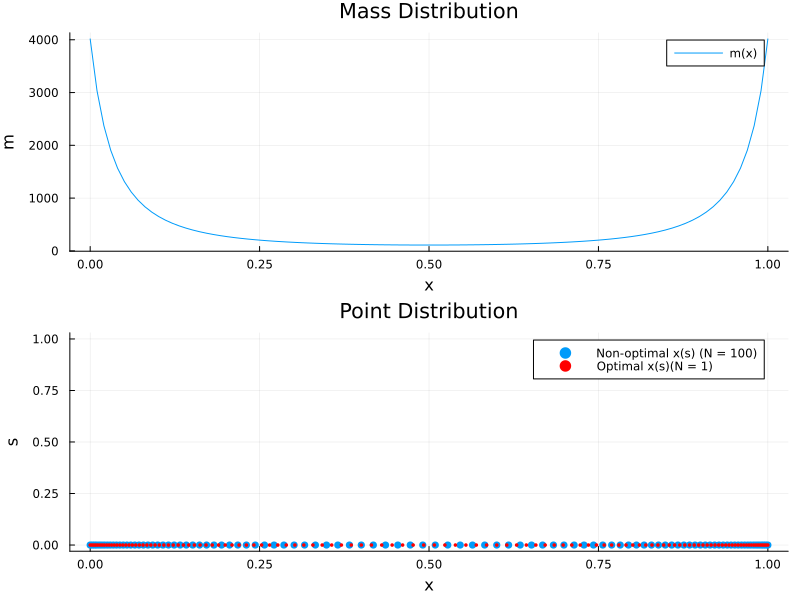

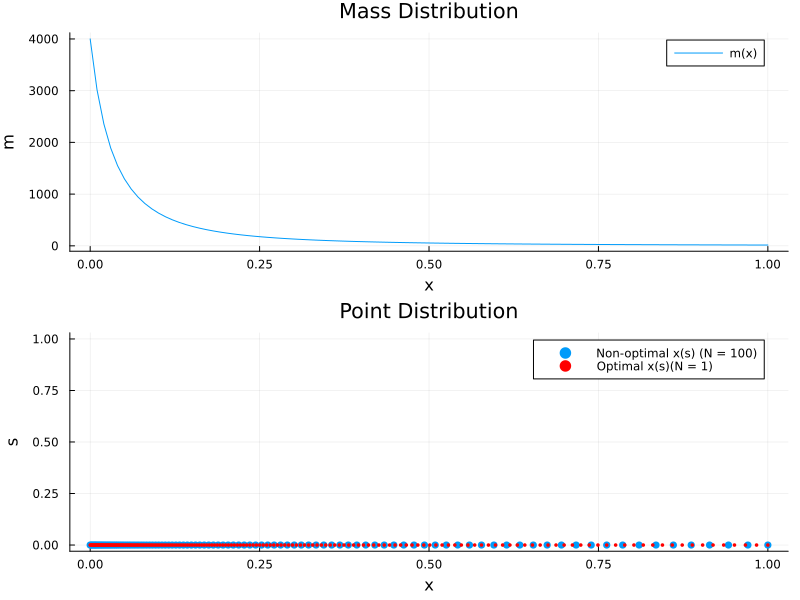

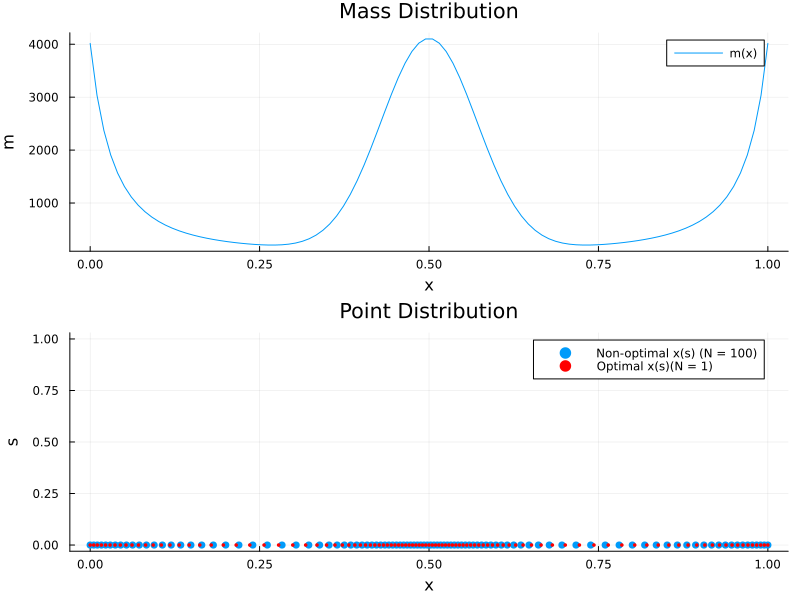

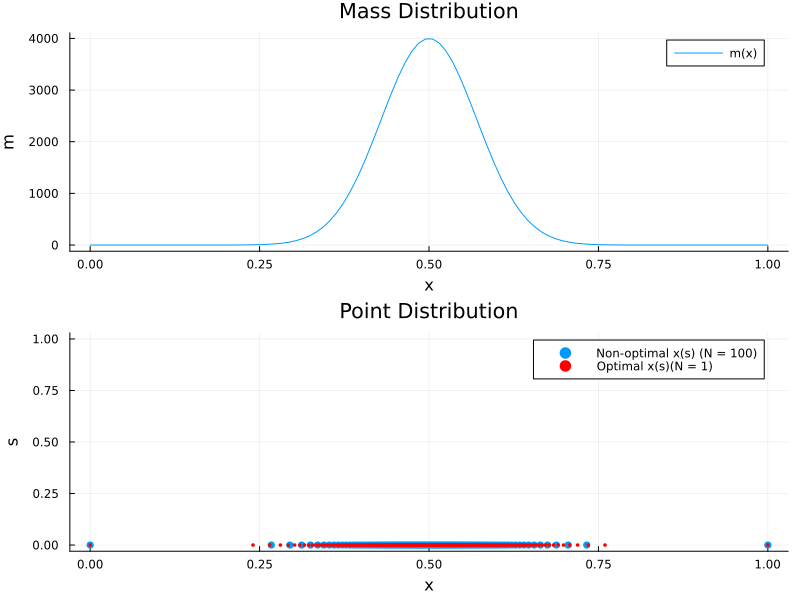

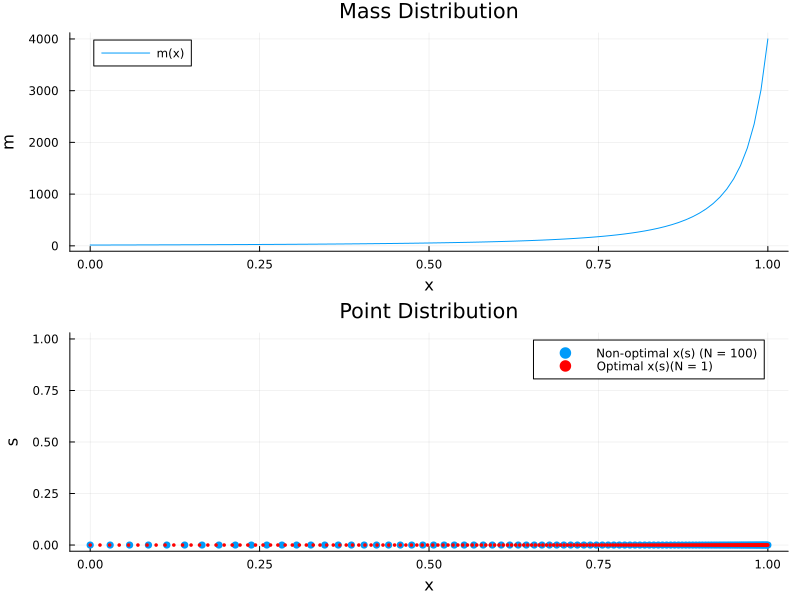

Analytic Solution

Now if we know $M(x)$, we can carry out the integration and find the solution. Let's do this and use this exact solution as a double check to our numerical solvers.
