Single Block with No Splitting
2D Single Block
Let's start by allowing the user to input a single Tortuga block in the code. Thus the input will be the initial grid and the boundary information. The code will take in a 2D grid and solve the ODE along each edge of the domain. As the optimal number of points need not be the same for boundary edges across from each other, the code will proceed to resolve the edge that does not have the maximum number of points. Finally, the code will solve for the interior points using Transfinite Interpolation and update the boundary information with the new dimensions of the block.
Algorithm
To solve a single block, we can pair up the left and top edges with the right and bottom edges respectively. For each pair, we do the following:
- for each pair:
- for each edge in pair
- Compute the 1D metric along the edge using
GridGeneration.Get1DMetric(pnts, metricFunction)
- Project the edge to 1D using
GridGeneration.ProjectBoundary2Dto1D(edge)
- Solve the ODE problem using the 1D metric and 1D points using
GridGeneration.SolveODE(m,m,N,xs)
- Compute the optimal number of points using
GridGeneration.ComputeOptimalNumberofPoints(xs, m, sol)
- Compute the 1D metric along the edge using
- set optimal number of points for pair to the max of the edge optimal numbers
- for each edge
- Solve the ODE problem using the pair optimal number of points using
GridGeneration.ComputeOptimalNumberofPoints(xs, m, sol)
- Save edge distribution
- Solve the ODE problem using the pair optimal number of points using
- for each edge in pair
- Run TFI on edge distributions to get final grid using
GridGeneration.TFI_2D(boundary)
Writing this in Julia:
function ProcessEdgePair(edgeA, edgeB, metricFunc, solver)
metricA = GridGeneration.Get1DMetric(edgeA, metricFunc)
metricB = GridGeneration.Get1DMetric(edgeB, metricFunc)
xsA = GridGeneration.ProjectBoundary2Dto1D(edgeA)
xsB = GridGeneration.ProjectBoundary2Dto1D(edgeB)
solA = GridGeneration.SolveODE(metricA, metricA, length(xsA), xsA; method=solver)
solB = GridGeneration.SolveODE(metricB, metricB, length(xsB), xsB; method=solver)
optNA = GridGeneration.ComputeOptimalNumberofPoints(xsA, metricA, solA[1, :])
optNB = GridGeneration.ComputeOptimalNumberofPoints(xsB, metricB, solB[1, :])
optN = max(optNA, optNB)
@info "Optimal number of points: $optN"
solOptA = GridGeneration.SolveODE(metricA, metricA, optN, xsA; method=solver)
solOptB = GridGeneration.SolveODE(metricB, metricB, optN, xsB; method=solver)
projectedA = GridGeneration.ProjectBoundary1Dto2D(edgeA, solOptA[1, :], xsA)
projectedB = GridGeneration.ProjectBoundary1Dto2D(edgeB, solOptB[1, :], xsB)
return projectedA, projectedB
end
function SolveBlock(block, bndInfo, interInfo, metricFunc; solver="analytic")
left = block[:, 1, :]
right = block[:, end, :]
projectedLeft, projectedRight = ProcessEdgePair(left, right, metricFunc, solver)
bottom = block[:, :, 1]
top = block[:, :, end]
projectedBottom, projectedTop = ProcessEdgePair(bottom, top, metricFunc, solver)
computedBlock = GridGeneration.TFI_2D([projectedTop', projectedRight', projectedBottom', projectedLeft'])
bndInfo = GridGeneration.UpdateBndInfo!(bndInfo, computedBlock)
return computedBlock, bndInfo, interInfo
end
Custom Metric
Let's also create a tool to output a custom metric field. I make this function by computing the distance from the airfoil to the point with the following w_rational(d, A, ℓ, p) = A / (1 + (d/ℓ)^p)
where $d$ is the distance, $A$ controls the amplitude, and $l$ and $p$ are used to control the fall off. This gives the space around the airfoil a higher metric value which decreases as you move away from the boundary. Let's also add a "hotspot" to control where the function places more points. We can achieve this by using the same function from above but rather than using the distance from the airfoil, we pass in the distance to the $(\text{hotspot}_x, \text{hotspot}_y)$. Finally we can add these two functions togethers.
Examples

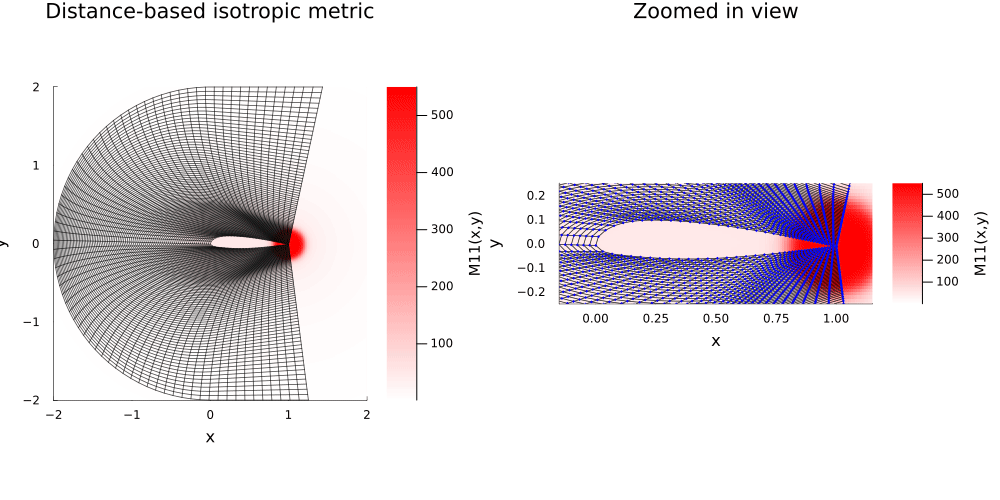

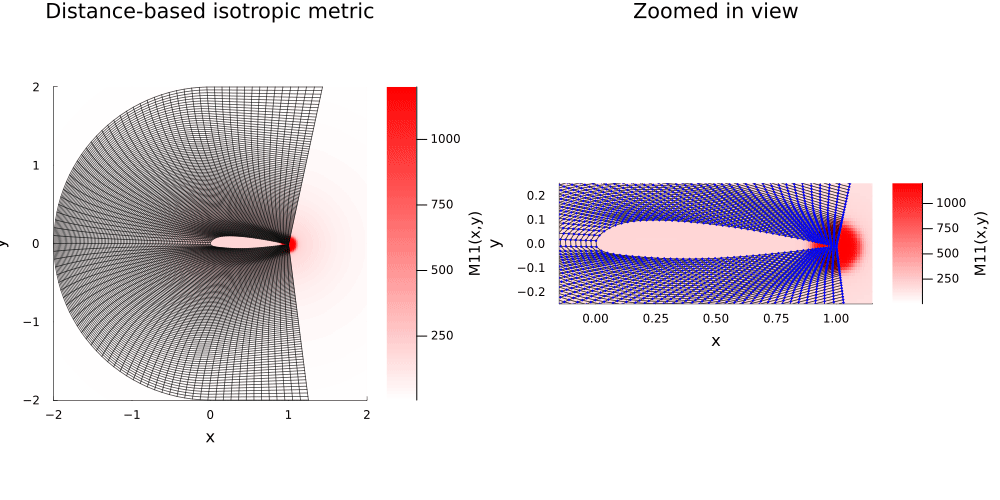

Let's use a small grid around an airfoil as an example. Looping over hotspots along the airfoil domain we can make some fun gifs as shown below. We see that the basic TFI method struggles to preserve orthogonality in the interior points but I'm not worried about this. We can use higher order TFI methods or elliptic smoothing to remedy this.
